BR No. 56560761
24 (8P+16E) Cores 24 Threads @ 5.5GHz | FCLGA1851
| Tray | AT807683B9B4884 S-Spec SA4V6 |
| Box | BX80768270K S-Spec SA4V6 |
Quote by tray or boxed part number. All tray CPU part numbers
Reference price US$288 · request a quote for volume pricing

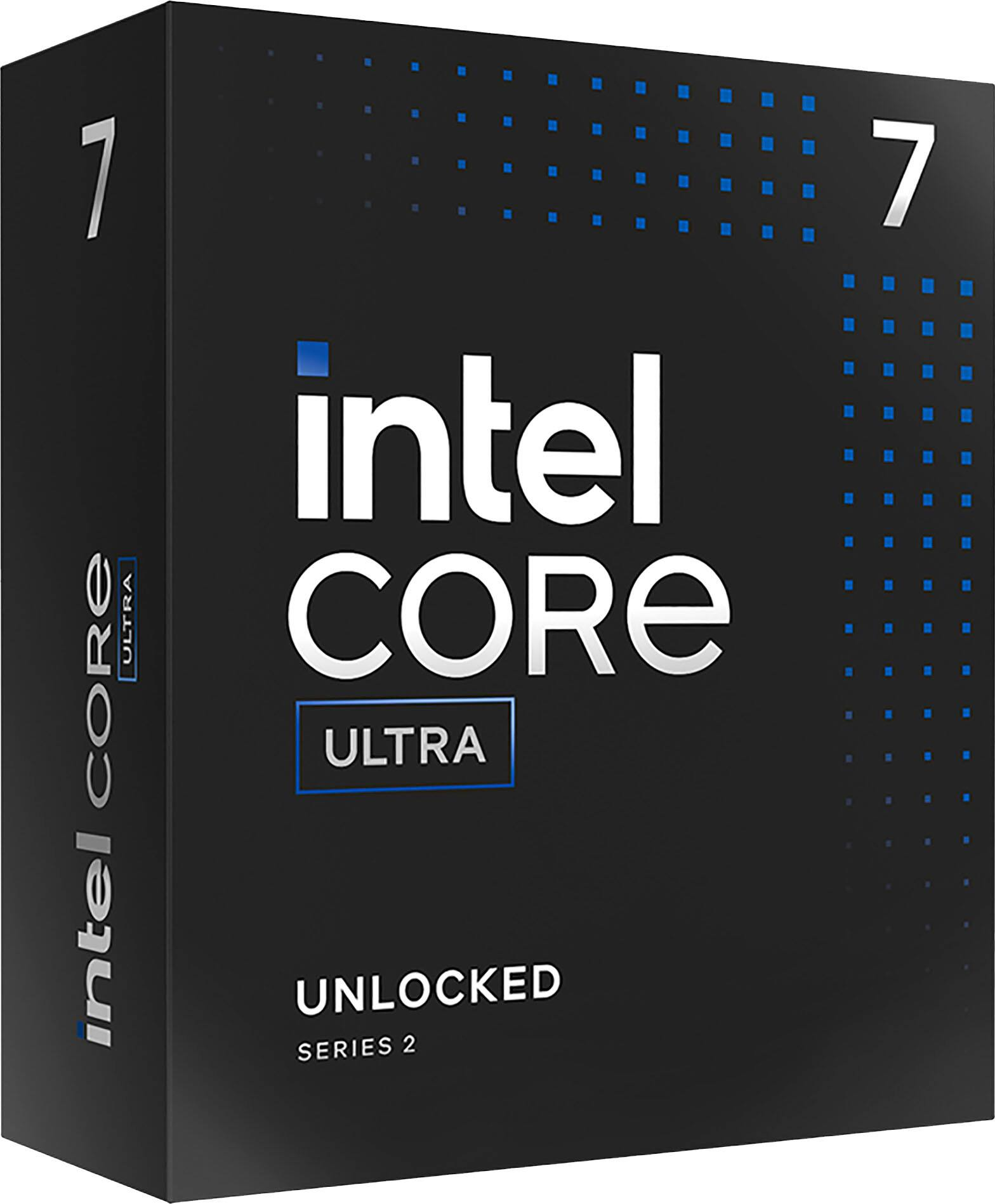

The Intel Core Ultra 7 270K Plus is a desktop processor for the FCLGA1851 platform, based on the Arrow Lake architecture (TSMC N3B). It features 24 (8P+16E) cores and 24 threads, with a base frequency of 3.7GHz and boost up to 5.5GHz. The CPU has 36 MB of cache with a 125 W base TDP. Memory support includes DDR5.
Manufacturer-verified specifications (Manufacturer-Verified (MV-1) · Source: Intel ARK)
| Codename | Arrow Lake |
| Series | Core Ultra 7 200S |
| Launch Date | Q1'26 |
| Cores / Threads | 24 (8P+16E) / 24 |
| Process | TSMC N3B |
| Socket | FCLGA1851 |
| Unlocked | Yes |
| Spec Code | SA4V6 |
| Stepping | B0 |
| Intel SKU | 245692 |
| Base Clock | 3.7GHz |
| Max Turbo Clock | 5.5GHz |
| L3 Cache | 36 MB |
| L2 Cache | 40 MB |
| Memory Type | DDR5 |
| Memory Speed | 7200 MT/s |
| Memory Channels | 2 |
| Max Memory | 256 GB |
| Base Power (TDP) | 125 W |
| Max Turbo Power | 250 W |
| Integrated Graphics | Intel Graphics |
| PCIe Version | 5.0, 4.0 |
| PCIe Lanes | 24 |
| Ordering Code (Box) | BX80768270K |
| Ordering Code (Tray) | AT807683B9B4884 |
| Package | Box, Tray |
The Intel Core Ultra 7 270K Plus is the same processor in two packagings — the tray (OEM) version and the boxed (retail) version. Quote by either part number.
| Tray (OEM) | Boxed (Retail) | |
| Part number | AT807683B9B4884 (SA4V6) | BX80768270K (SA4V6) |
| Packaging | Bulk tray | Retail box |
| Cooler | Not included | As shipped by Intel |
| Warranty | Seller / OEM terms | Intel retail warranty |
Both are the same chip with the same processor number — all tray CPU part numbers.
Evergreen Computer Technology Company supplies this processor wholesale from Hong Kong to system integrators, resellers and enterprise buyers. Quote by tray or boxed part number — lead time and pricing are confirmed on your quotation.
The Intel Core Ultra 7 270K Plus uses the FCLGA1851 socket (Core Ultra 7 200S platform).
The Intel Core Ultra 7 270K Plus supports DDR5 with a maximum of 256 GB.
The Intel Core Ultra 7 270K Plus has 24 (8P+16E) cores and 24 threads, with a max turbo frequency of 5.5GHz.
The Intel Core Ultra 7 270K Plus has a base power (TDP) of 125 W and max turbo power of 250 W.
Yes, the Intel Core Ultra 7 270K Plus includes Intel Graphics.
