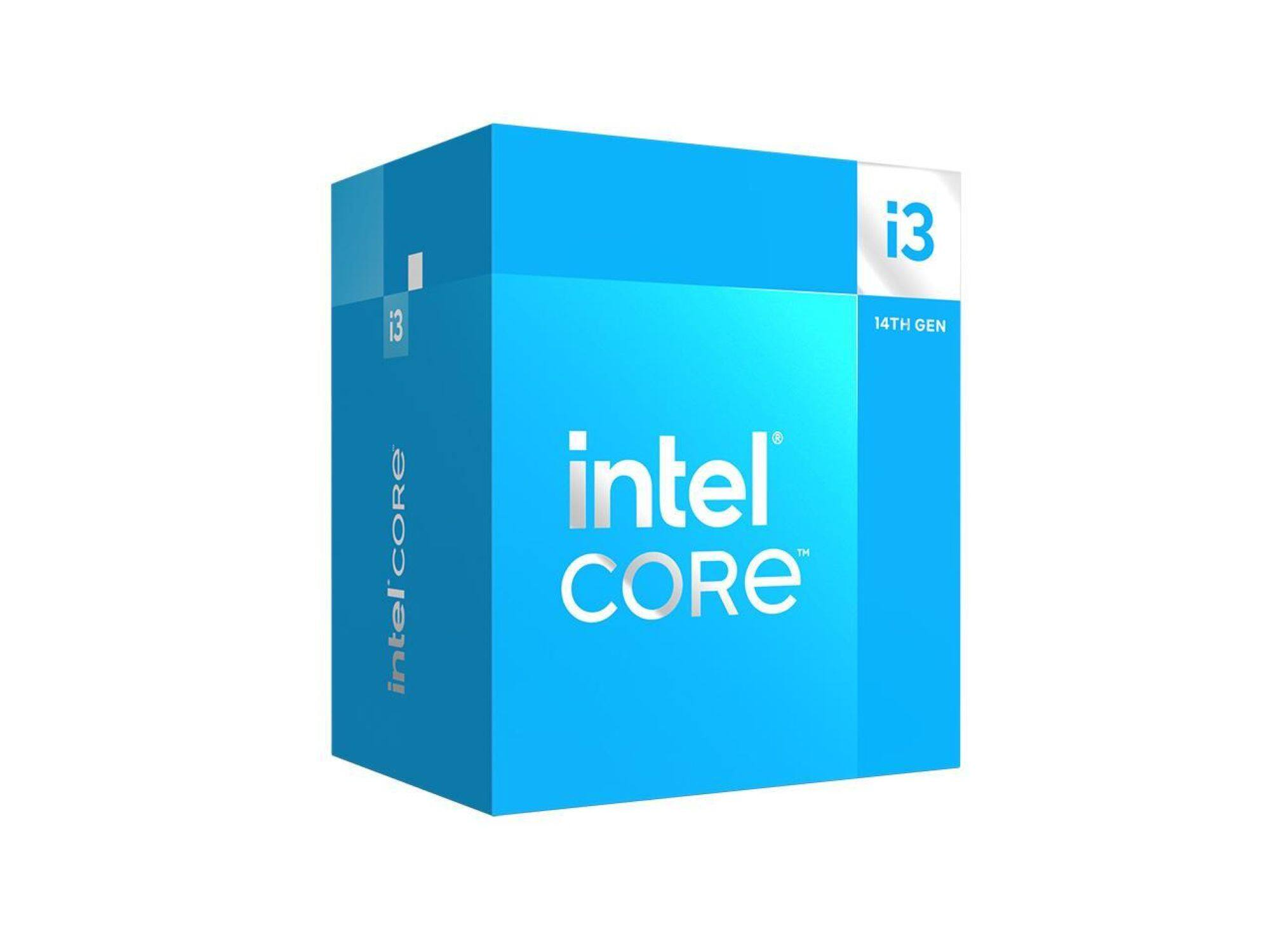

The Intel Core i3-14100 (14th Gen) is a desktop processor for the FCLGA1700 platform, based on the Raptor Lake architecture (Intel 7). It features 4 cores and 8 threads, with a base frequency of 3.5 GHz and boost up to 4.7 GHz. The CPU has 12.0 MB of cache with a 60 W base TDP. Memory support includes DDR5 4800 MT/s / DDR4 3200 MT/s.
4 Cores 8 Threads @ 4.7 GHz | FCLGA1700
| Codename | Raptor Lake |
| Series | 14th Gen |
| Cores / Threads | 4 / 8 |
| Process | Intel 7 |
| Socket | FCLGA1700 |
| Base Clock | 3.5 GHz |
| Max Turbo Clock | 4.7 GHz |
| Total Cache | 12.0 MB |
| L2 Cache | 5.0 MB |
| Memory Type | DDR5 4800 MT/s / DDR4 3200 MT/s |
| Max Memory | 192 GB |
| Base Power (TDP) | 60 W |
| Max Turbo Power | 110 W |
| Integrated Graphics | Intel® UHD Graphics 730 |
| PCIe Version | 5.0 and 4.0 |
| PCIe Lanes | 20 |
| Ordering Code | BXC8071514100 |
| Package | Box |
The Intel Core i3-14100 (14th Gen) uses the FCLGA1700 socket, compatible with 14th Gen-generation Intel motherboards.
The Intel Core i3-14100 (14th Gen) supports DDR5 4800 MT/s / DDR4 3200 MT/s with a maximum of 192 GB.
The Intel Core i3-14100 (14th Gen) has 4 cores and 8 threads, with a max turbo frequency of 4.7 GHz.
The Intel Core i3-14100 (14th Gen) has a base power (TDP) of 60 W and max turbo power of 110 W.
Yes, the Intel Core i3-14100 (14th Gen) includes Intel® UHD Graphics 730.
