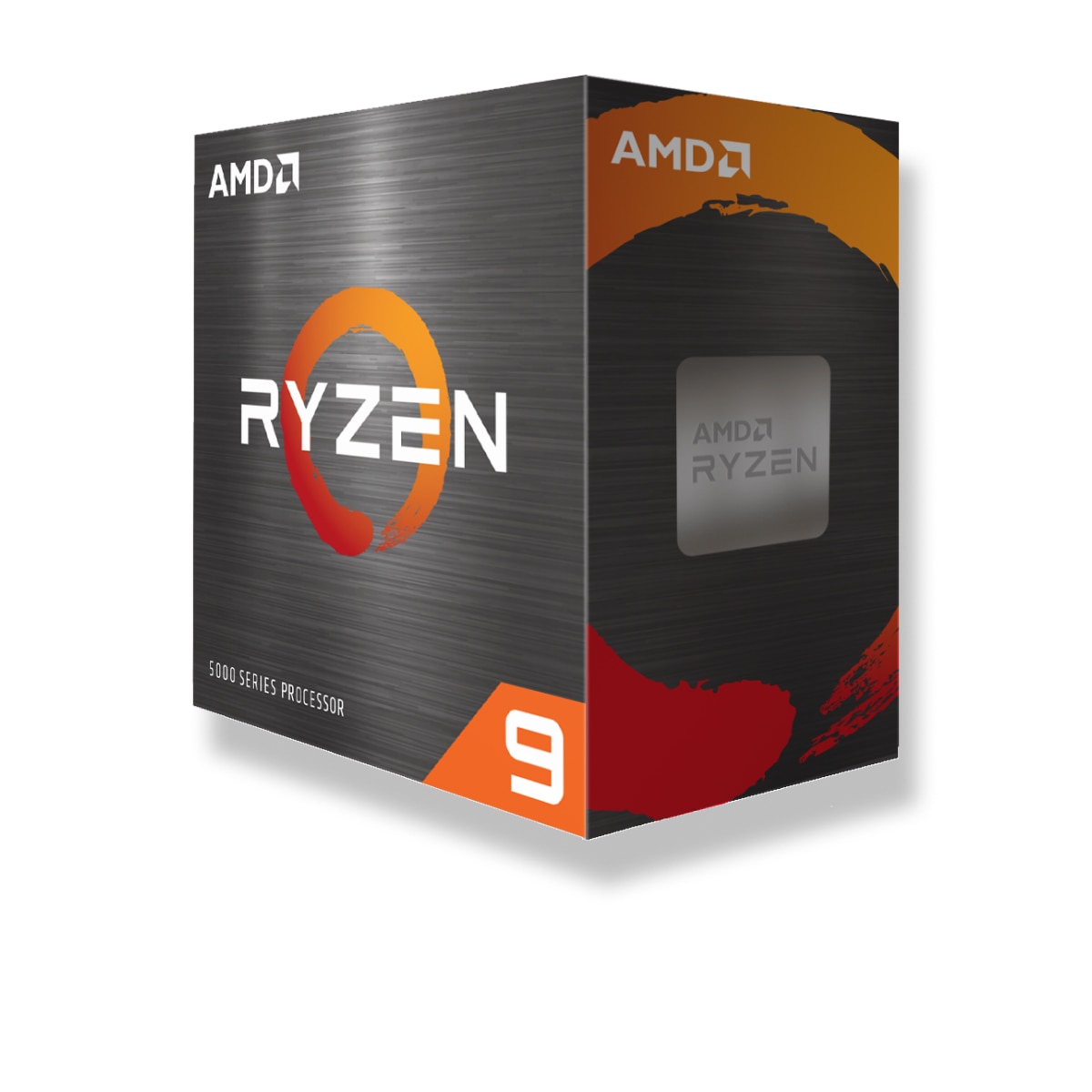

The AMD Ryzen 9 5900XT Boxed 16C/32T 4.8GHz 64MB L3 105W AM4 is a desktop processor for the AM4 platform, based on the Vermeer architecture (TSMC 7nm FinFET). It features 16 cores and 32 threads, with a base frequency of 3.3 GHz and boost up to 4.8 GHz. The CPU has 64 MB of L3 cache with a 105 W TDP. Memory support includes DDR4.
16-Core 32-Thread @ 4.8 GHz | AM4
Note: this chart shows historical reference pricing for trend insight only — it is not a live quote. To place an order or get current pricing, please contact us or your dedicated sales manager.
Manufacturer-verified specifications (Manufacturer-Verified (MV-1) · Source: AMD.com)
| Family | Ryzen 9 |
| Series | Ryzen 9 5000 Series |
| Codename | Vermeer |
| Cores / Threads | 16 / 32 |
| Lithography | TSMC 7nm FinFET |
| Socket | AM4 |
| Base Clock | 3.3 GHz |
| Max Boost Clock | 4.8 GHz |
| Unlocked | Yes |
| L3 Cache | 64 MB |
| L2 Cache | 8 MB |
| L1 Cache | 1024 KB |
| Memory Type | DDR4 |
| Max Memory | 128 GB |
| Channels | 2 |
| TDP | 105 W |
| PCIe Version | PCIe® 4.0 |
| Launch Date | 07/31/2024 |
| Ordering Code | 100-100001581WOF |
| Package | Box |
The AMD Ryzen 9 5900XT Boxed 16C/32T 4.8GHz 64MB L3 105W AM4 uses the AM4 socket.
The AMD Ryzen 9 5900XT Boxed 16C/32T 4.8GHz 64MB L3 105W AM4 supports DDR4 with up to 128 GB across 2 channels.
The AMD Ryzen 9 5900XT Boxed 16C/32T 4.8GHz 64MB L3 105W AM4 has 16 cores and 32 threads with a max boost clock of 4.8 GHz.
The AMD Ryzen 9 5900XT Boxed 16C/32T 4.8GHz 64MB L3 105W AM4 has a default TDP of 105 W.
Yes, the AMD Ryzen 9 5900XT Boxed 16C/32T 4.8GHz 64MB L3 105W AM4 is unlocked and supports overclocking.
