What socket and motherboard chipset does the AMD Ryzen 9 5900X require?

The AMD Ryzen 9 5900X uses the AM4 socket and is compatible with chipsets: B450, X470, B550, X570.

What memory does the AMD Ryzen 9 5900X support?

The AMD Ryzen 9 5900X supports DDR4-3200. Maximum supported memory is 128 GB.

Technical Snapshot

The AMD Ryzen 9 5900X is a desktop processor for the AM4 platform, based on the Zen 3 (Zen 3 (Vermeer)) architecture (TSMC 7 nm). It features 12 cores and 24 threads, with a base frequency of 3.7 GHz and boost up to 4.8 GHz. The CPU has 64 MB of L3 cache with a 105 W base TDP. Memory support includes DDR4-3200.

Use Case: High-end gaming, content creation, workstation computing
Compatibility: AM4 motherboard
Category: Desktop Processor — Zen 3 (Zen 3 (Vermeer))

AMD PRODUCT PAGE

Front

Top

Socket

Pins

AMD

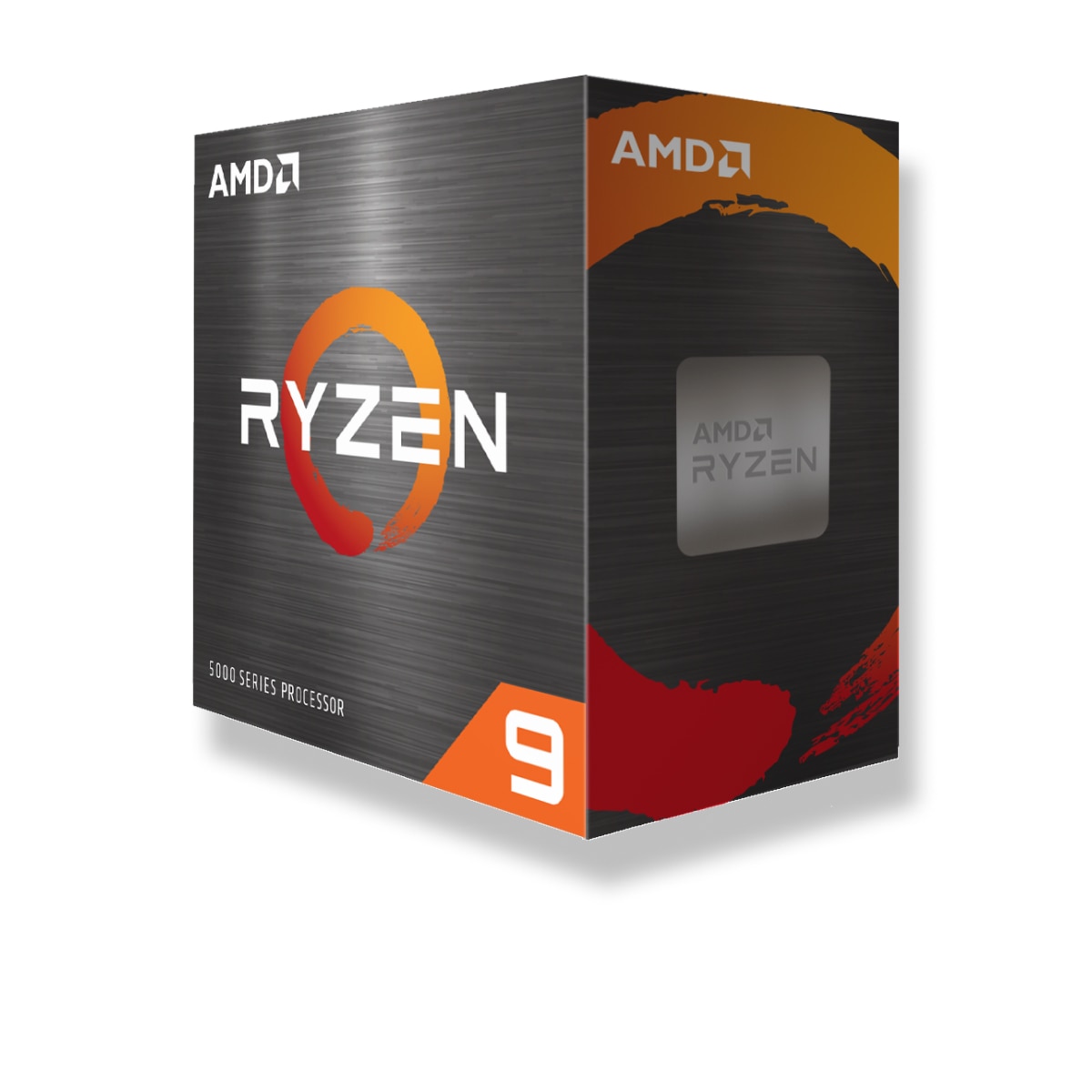

Ryzen 9 5900X

12-Core 24-Thread @ 4.8 GHz | AM4 Socket

Ordering Code 100-100000061WOF

Package Box (Retail)

Category Desktop Processors

Cores

4.8 GHz

Max Boost

64 MB

L3 Cache

Threads

105W

TDP

TSMC 7 nm

Process

Data source: AMD Product Page

Processor Architecture & Cores

Codename	Zen 3 (Vermeer)
Product Code	5900X
Cores / Threads	12 / 24
SMT (Simultaneous Multi-Threading)	Yes
Process	TSMC 7 nm
Socket	AM4

Performance & Frequency

Base Clock	3.7 GHz
Max Boost Clock	4.8 GHz
Precision Boost 2 / Overdrive	Enabled
Overclocking	Unlocked

Cache Hierarchy

L3 Cache	64 MB
L2 Cache (Total)	6 MB
L2 Cache per Core	512 KB

Memory Support

Memory Type	DDR4-3200
Max Memory	128 GB
Channels	2
ECC Support	Yes

Thermal & Power

TDP (Processor Base Power)	105 W
Socket	AM4

Graphics

Connectivity

PCIe Version	PCIe 4.0
PCIe Lanes	24 lanes

Product Information

Launch Date	Q4 2020
Ordering Code (Box)	100-100000061WOF
Ordering Code (Tray)	100-000000061
Compatible Chipsets	B450, X470, B550, X570

JSON-LD Schema Preview

Schema.org

{
  "@context": "https://schema.org",
  "@type": "Product",
  "name": "AMD Ryzen 9 5900X",
  "brand": {
    "@type": "Brand",
    "name": "AMD"
  },
  "sku": "100-100000061WOF",
  "mpn": "100-100000061WOF",
  "description": "AMD Ryzen 9 5900X 12-Core 24-Thread AM4 desktop processor \u2014 up to 4.8 GHz Turbo, 64 MB L3 Cache, 105 W TDP, DDR4-3200 support. Wholesale pricing from Evergreen Computer Technology.",
  "category": "Computer Hardware > Processors > AMD Desktop CPUs",
  "image": [
    "https://www.amd.com/content/dam/amd/en/images/products/processors/ryzen/2505-ryzen-702x702.webp"
  ],
  "url": "https://evergreencomputer.com.hk/products/processors/amd-ryzen9-.html",
  "additionalProperty": [
    {
      "@type": "PropertyValue",
      "name": "Processor Type",
      "value": "Desktop CPU (AM4)"
    },
    {
      "@type": "PropertyValue",
      "name": "Codename",
      "value": "Zen 3 (Vermeer)"
    },
    {
      "@type": "PropertyValue",
      "name": "Total Cores",
      "value": "12"
    },
    {
      "@type": "PropertyValue",
      "name": "Total Threads",
      "value": "24"
    },
    {
      "@type": "PropertyValue",
      "name": "Base Frequency",
      "value": "3.7 GHz"
    },
    {
      "@type": "PropertyValue",
      "name": "Max Turbo Frequency",
      "value": "4.8 GHz"
    },
    {
      "@type": "PropertyValue",
      "name": "L3 Cache",
      "value": "64 MB"
    },
    {
      "@type": "PropertyValue",
      "name": "L2 Cache",
      "value": "6 MB"
    },
    {
      "@type": "PropertyValue",
      "name": "Processor Base Power (TDP)",
      "value": "105 W"
    },
    {
      "@type": "PropertyValue",
      "name": "Max Turbo Power",
      "value": "105 W"
    },
    {
      "@type": "PropertyValue",
      "name": "Memory Type",
      "value": "DDR4-3200"
    },
    {
      "@type": "PropertyValue",
      "name": "Lithography",
      "value": "TSMC 7 nm"
    },
    {
      "@type": "PropertyValue",
      "name": "Socket",
      "value": "AM4"
    }
  ]
}

← Back to AMD CPU Catalog

Frequently Asked Questions

What socket and chipset does the Ryzen 9 5900X use?

The Ryzen 9 5900X uses the AM4 socket and is compatible with B450, X470, B550, X570.

What memory does the Ryzen 9 5900X support?

The Ryzen 9 5900X supports DDR4-3200 with a maximum of 128 GB across 2 channels.
