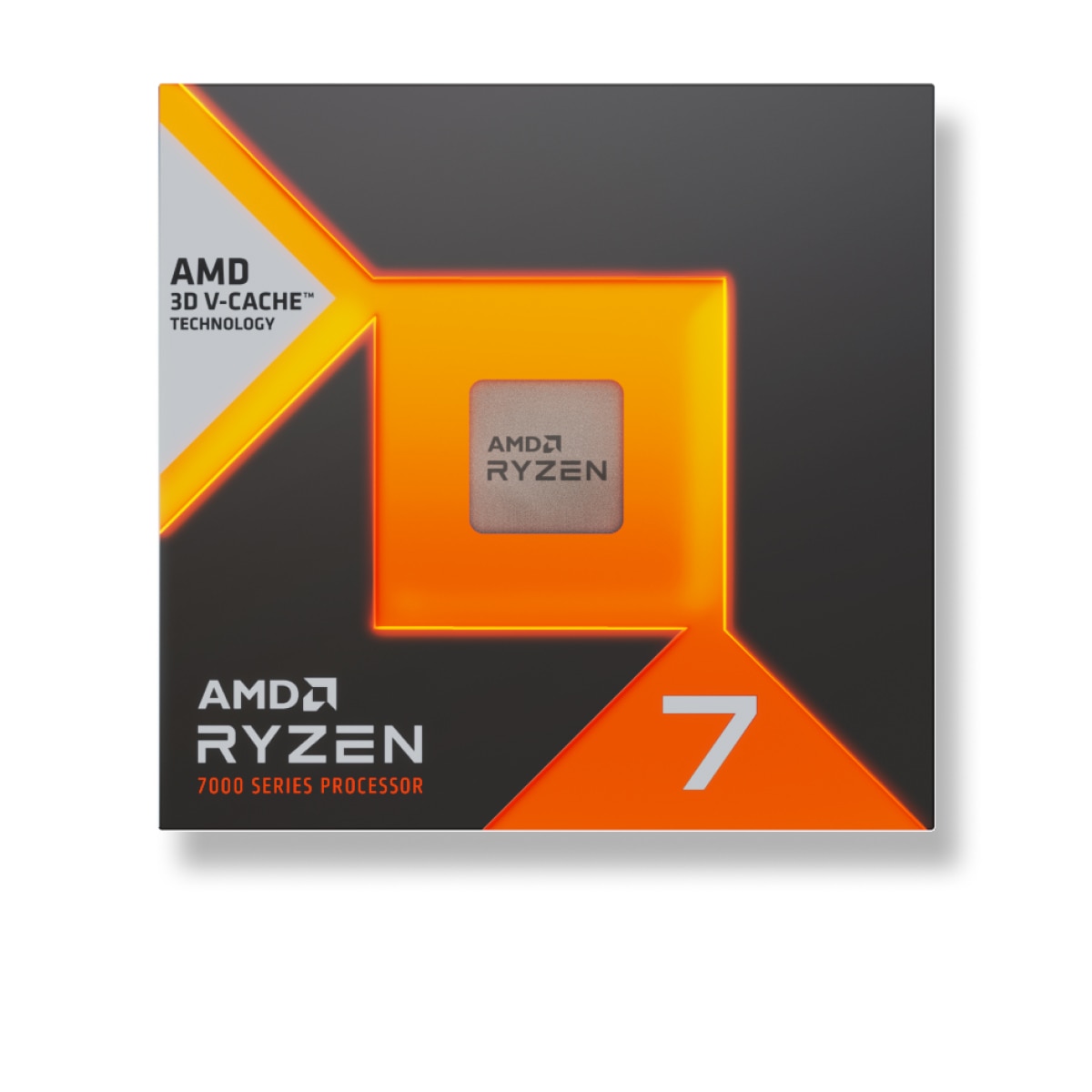

The AMD Ryzen 7 7800X3D Boxed 8C/16T 5.0GHz 96MB L3 120W AM5 is a desktop processor for the AM5 platform, based on the Zen 4 architecture (TSMC 5nm FinFET). It features 8 cores and 16 threads, with a base frequency of 4.2 GHz and boost up to 5.0 GHz. The CPU has 96.0 MB of L3 cache with a 120 W TDP. Memory support includes DDR5.
8-Core 16-Thread @ 5.0 GHz | AM5
Note: this chart shows historical reference pricing for trend insight only — it is not a live quote. To place an order or get current pricing, please contact us or your dedicated sales manager.
| Family | Ryzen 7 |
| Series | Ryzen 7000 Series |
| Codename | Zen 4 |
| Cores / Threads | 8 / 16 |
| Lithography | TSMC 5nm FinFET |
| Socket | AM5 |
| Base Clock | 4.2 GHz |
| Max Boost Clock | 5.0 GHz |
| Unlocked | No |
| L3 Cache | 96.0 MB |
| L2 Cache | 8.0 MB |
| Memory Type | DDR5 |
| Max Memory | 128 GB |
| Channels | 2 |
| TDP | 120 W |
| Integrated Graphics | AMD Radeon™ Graphics |
| PCIe Version | PCIe® 5.0 |
| Launch Date | 04/06/2023 |
| Ordering Code | 100-100000910WOF |
| Package | Box |
The AMD Ryzen 7 7800X3D Boxed 8C/16T 5.0GHz 96MB L3 120W AM5 uses the AM5 socket.
The AMD Ryzen 7 7800X3D Boxed 8C/16T 5.0GHz 96MB L3 120W AM5 supports DDR5 with up to 128 GB across 2 channels.
The AMD Ryzen 7 7800X3D Boxed 8C/16T 5.0GHz 96MB L3 120W AM5 has 8 cores and 16 threads with a max boost clock of 5.0 GHz.
The AMD Ryzen 7 7800X3D Boxed 8C/16T 5.0GHz 96MB L3 120W AM5 has a default TDP of 120 W.
No, the AMD Ryzen 7 7800X3D Boxed 8C/16T 5.0GHz 96MB L3 120W AM5 is locked and does not support manual overclocking.
