ASUS TUF Gaming

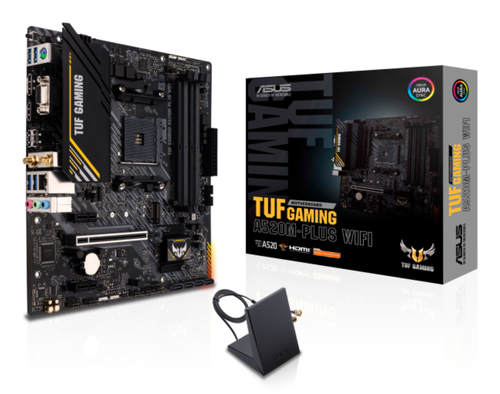

ASUS TUF GAMING A520M-PLUS
A520 mATX motherboard for AMD AM4 — DDR4, up to 128 GB, PCIe 3.0, 1GbE.
Socket
AMD AM4
The CPU socket determines which processors are compatible with this motherboard.
Chipset
A520
The chipset controls data flow between the processor, memory, and peripherals.
Max RAM
128 GB DDR4
Maximum supported memory capacity when all DIMM slots are populated with highest-density modules.
PCIe Gen
PCIe 3.0
The PCIe generation determines maximum bandwidth for graphics cards and NVMe storage.
Ordering Code90MB1510-M0EAY0
PackageRetail (Box)
CategoryMotherboards
Add to Product Comparison to see side-by-side specs
I/O & Connectivity
Memory
DDR4 (4 DIMM)
Max Capacity
128 GB
PCIe
Gen 3.0
M.2 Slots
1
LAN
1GbE
USB
USB 3.2 Gen1
Audio
Realtek ALC887 7.1
Rear I/O backplate diagram — refer to ASUS product page for detailed layout
Motherboard Anatomy
1
VRM / Power Delivery
Voltage Regulator Module area — delivers clean, stable power to the CPU for reliable performance under load.
2
M.2 SSD Slots
1 M.2 slot for NVMe solid-state drives — PCIe 3.0 interface for maximum sequential read/write speeds.
3
Audio Subsystem
Realtek ALC887 7.1 — shielded audio circuitry with dedicated PCB layers for clean signal separation.
Full Specifications
Specifications sourced from ASUS official product database. Data verified against distributor documentation.
| Platform | |
| Chipset | A520 |
| Socket | AMD AM4 |
| Form Factor | mATX |
| Memory | |
| Memory Type | DDR4 |
| DIMM Slots | 4 |
| Max RAM | 128 GB |
| Expansion | |
| PCIe Generation | PCIe 3.0 |
| M.2 Slots | 1 |
| Connectivity | |
| LAN | 1GbE |
| USB (Rear I/O) | USB 3.2 Gen1 |
| Audio | |
| Audio Codec | Realtek ALC887 7.1 |
| Ordering | |
| Part Number | 90MB1510-M0EAY0 |
| Series | TUF Gaming |
Support & Downloads
Latest BIOS Update
Visit ASUS Support
Chipset & LAN Drivers
Visit ASUS Support
User Manual & Quick Start Guide
Visit ASUS Support
Frequently Asked Questions
What socket does the TUF GAMING A520M-PLUS use?
The TUF GAMING A520M-PLUS uses the AMD AM4 socket, compatible with AMD desktop processors.
How much RAM does the TUF GAMING A520M-PLUS support?
The TUF GAMING A520M-PLUS supports up to 128 GB of DDR4 memory across 4 DIMM slots.
How many M.2 slots does the TUF GAMING A520M-PLUS have?
The TUF GAMING A520M-PLUS features 1 M.2 slot for high-speed NVMe SSD storage with PCIe 3.0 support.
