Technical Snapshot

The AMD Ryzen 7 8700G is a desktop processor for the AM5 platform, based on the Zen 4 APU (Zen 4 (Phoenix)) architecture (TSMC 4 nm). It features 8 cores and 16 threads, with a base frequency of 4.2 GHz and boost up to 5.1 GHz. The CPU has 16 MB of L3 cache with a 65 W base TDP. Memory support includes DDR5-5200.

Use Case
High-end gaming, content creation, workstation computing
Compatibility
AM5 motherboard
Category
Desktop Processor — Zen 4 APU (Zen 4 (Phoenix))

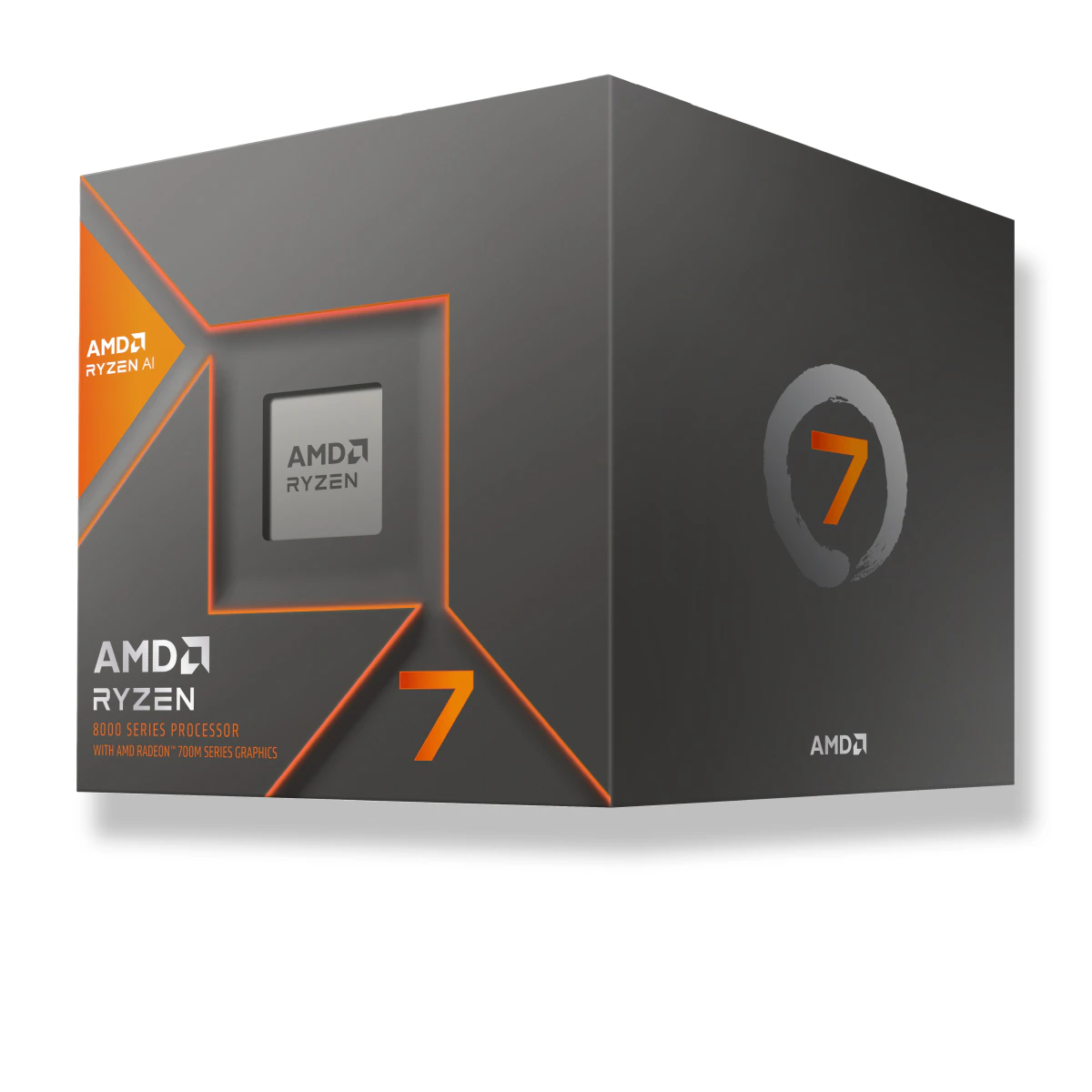

AMD

Ryzen 7 8700G

8-Core 16-Thread @ 5.1 GHz | AM5 Socket

Ordering Code 100-100001236BOX
Package Box (Retail)
Category Desktop Processors
8
Cores
5.1 GHz
Max Boost
16 MB
L3 Cache
16
Threads
65W
TDP
TSMC 4 nm
Process
Data source: AMD Product Page
Processor Architecture & Cores
Codename Zen 4 (Phoenix)
Product Code 8700G
Cores / Threads 8 / 16
SMT (Simultaneous Multi-Threading) Yes
Process TSMC 4 nm
Socket AM5
Performance & Frequency
Base Clock 4.2 GHz
Max Boost Clock 5.1 GHz
Precision Boost 2 / Overdrive Enabled
Overclocking Unlocked
Cache Hierarchy
L3 Cache 16 MB
L2 Cache (Total) 8 MB
L2 Cache per Core 512 KB
Memory Support
Memory Type DDR5-5200
Max Memory 128 GB
Channels 2
ECC Support Yes
Thermal & Power
TDP (Processor Base Power) 65 W
Socket AM5
Included Cooler AMD Wraith Stealth
Graphics
Integrated Graphics AMD Radeon 780M (12 RDNA 3 CUs)
Connectivity
PCIe Version PCIe 4.0
PCIe Lanes 20 lanes
Product Information
Launch Date Q1 2024
Ordering Code (Box) 100-100001236BOX
Ordering Code (Tray) 100-000001236
Compatible Chipsets B650, B650E, X670, X670E, B840, X870, X870E

JSON-LD Schema Preview

Schema.org
{
  "@context": "https://schema.org",
  "@type": "Product",
  "name": "AMD Ryzen 7 8700G",
  "brand": {
    "@type": "Brand",
    "name": "AMD"
  },
  "sku": "100-100001236BOX",
  "mpn": "100-100001236BOX",
  "description": "AMD Ryzen 7 8700G 8-Core 16-Thread AM5 desktop processor \u2014 up to 5.1 GHz Turbo, 16 MB L3 Cache, 65 W TDP, DDR5-5200 support with AMD Radeon 780M (12 RDNA 3 CUs). Wholesale pricing from Evergreen Computer Technology.",
  "category": "Computer Hardware > Processors > AMD Desktop CPUs",
  "image": [
    "https://www.amd.com/content/dam/amd/en/images/products/processors/ryzen/2505-ryzen-9000-702x702.webp"
  ],
  "url": "https://evergreencomputer.com.hk/products/processors/amd-ryzen7-.html",
  "additionalProperty": [
    {
      "@type": "PropertyValue",
      "name": "Processor Type",
      "value": "Desktop CPU (AM5)"
    },
    {
      "@type": "PropertyValue",
      "name": "Codename",
      "value": "Zen 4 (Phoenix)"
    },
    {
      "@type": "PropertyValue",
      "name": "Total Cores",
      "value": "8"
    },
    {
      "@type": "PropertyValue",
      "name": "Total Threads",
      "value": "16"
    },
    {
      "@type": "PropertyValue",
      "name": "Base Frequency",
      "value": "4.2 GHz"
    },
    {
      "@type": "PropertyValue",
      "name": "Max Turbo Frequency",
      "value": "5.1 GHz"
    },
    {
      "@type": "PropertyValue",
      "name": "L3 Cache",
      "value": "16 MB"
    },
    {
      "@type": "PropertyValue",
      "name": "L2 Cache",
      "value": "8 MB"
    },
    {
      "@type": "PropertyValue",
      "name": "Processor Base Power (TDP)",
      "value": "65 W"
    },
    {
      "@type": "PropertyValue",
      "name": "Max Turbo Power",
      "value": "65 W"
    },
    {
      "@type": "PropertyValue",
      "name": "Memory Type",
      "value": "DDR5-5200"
    },
    {
      "@type": "PropertyValue",
      "name": "Lithography",
      "value": "TSMC 4 nm"
    },
    {
      "@type": "PropertyValue",
      "name": "Integrated Graphics",
      "value": "AMD Radeon 780M (12 RDNA 3 CUs)"
    },
    {
      "@type": "PropertyValue",
      "name": "Socket",
      "value": "AM5"
    }
  ]
}
← Back to AMD CPU Catalog

Frequently Asked Questions

What socket and chipset does the Ryzen 7 8700G use?

The Ryzen 7 8700G uses the AM5 socket and is compatible with B650, B650E, X670, X670E, B840, X870, X870E.

What memory does the Ryzen 7 8700G support?

The Ryzen 7 8700G supports DDR5-5200 with a maximum of 128 GB across 2 channels.
